Author Topic: 1/48 Modelsvit Yak-1b 1943 ''Normandie Niemen"  (Read 8176 times)
4bogreen
Sr. Member
****
Posts: 300



« on: June 08, 2015, 12:23:40 PM »

Hey guys,

My MiG-3 is finnished, so now we have found a new victim. The Modelsvit 1/48 Yak-1b. Molding is average. I have the Armory detail and flap set. These look very nice. I am used to have the Eduard zoom pre-colored PE, so this will be new, to color the instrumental panel by myself. Photo's will follow soon!

Regards,

Remco
Logged

On the workbench,
- Yak-3 (Zvezda )
- T-34 STZ 1942 early (Cyberhobby)
- T-14 Armata (Revell)
Massimo Tessitori
Administrator
Hero Member
*****
Posts: 5777


« Reply #1 on: June 08, 2015, 07:54:49 PM »

Hi Remco,
please, check for an eventual warping in the rear of the fuselage, it's less difficult to correct it before the halves are joined.
Regards
Massimo
Logged
4bogreen
Sr. Member
****
Posts: 300



« Reply #2 on: June 08, 2015, 08:19:07 PM »

Great! I will have a look! Thanks for the tip, Massimo!
Logged

On the workbench,
- Yak-3 (Zvezda )
- T-34 STZ 1942 early (Cyberhobby)
- T-14 Armata (Revell)
xan
Sr. Member
****
Posts: 457



WWW
« Reply #3 on: June 09, 2015, 11:57:39 AM »

Hello Remco,
great! this kit will be may next mount. I will do a Normandie plane too. the de la Poype's one.



and you what plane did you choose?

Xan
Logged

4bogreen
Sr. Member
****
Posts: 300



« Reply #4 on: June 09, 2015, 08:27:14 PM »

Hi Xan!

You never going to believe it. I am going to build this plane also. We can do a dual build! I got the decals from B-realistic, and i found it great markings....

Regards,

Remco
Logged

On the workbench,
- Yak-3 (Zvezda )
- T-34 STZ 1942 early (Cyberhobby)
- T-14 Armata (Revell)
xan
Sr. Member
****
Posts: 457



WWW
« Reply #5 on: October 11, 2015, 09:48:30 PM »

hello Remco i just see now the post you send un june!
did you start (and perhaps end) the model?
I 'm building it. see the step by step (in french) in this link:
http://www.master194.com/forum/viewtopic.php?f=4&t=89670

Xan
Logged

4bogreen
Sr. Member
****
Posts: 300



« Reply #6 on: May 05, 2016, 07:28:28 PM »

Hi Xan!

Long time when i checked this topic, i thought i had to start a new topic. I have read your build. Very well done!!. It was extremely helpful for some questions about the bottles inside the cockpit. When i was building the Spitfire, i found some renewed intrest about the Yak-1b. Now i am motivated to have a ''green black'' camouflaged plane in my collection  Cheesy

Unfortunately i have bad lighting on my workbench. With the sell of two T-34 tanks, i now had a budget to buy a new light for making WIP photo's....

Regards,

Remco
Logged

On the workbench,
- Yak-3 (Zvezda )
- T-34 STZ 1942 early (Cyberhobby)
- T-14 Armata (Revell)
4bogreen
Sr. Member
****
Posts: 300



« Reply #7 on: May 05, 2016, 07:56:56 PM »

For making this Yak, i use the Modelsvit Yak-1b kit and all three Armory PE/ resin wheels updates



I want to open up the maintenance hatches in the cockpit. Unfortunately the detail in the cockpit is minimal and some parts are missing to (radio and the framing for attaching the plating of the hatches). So, on to scratchbuild city. The trip pays off!









The flaps are very difficult to create. a lot of small parts and lots dry-fitting...



I was also not very satisfied with the control surfaces. These are very thick. To correct this, i used Vector resin Yak-7/9 control surfaces. Some adjustments (no, lets call i surgery  Grin) were made to fit the Yak-1b.











....and some other WIP photo's







I hope you like it (and its a bit correct)!

Regards,

Remco
Logged

On the workbench,
- Yak-3 (Zvezda )
- T-34 STZ 1942 early (Cyberhobby)
- T-14 Armata (Revell)
4bogreen
Sr. Member
****
Posts: 300



« Reply #8 on: June 07, 2016, 03:01:30 PM »

Hey guys,

I am painting the interior of the yak-1b. The color of the seat is a bit of a mystery to me. Normally its A-14 grey with a black of brown fabrics on the backseat. I have a color photo of a Yak-1b in the Polish museum, but then the seat is green (aluminium primer) and the armored plate with the fabrics A-14. My question is: Were the armored plates (or backseat of the Yak-1b) black or A-14 grey?

Thanks in advance

Regards,

Remco Cheesy
Logged

On the workbench,
- Yak-3 (Zvezda )
- T-34 STZ 1942 early (Cyberhobby)
- T-14 Armata (Revell)
Massimo Tessitori
Administrator
Hero Member
*****
Posts: 5777


« Reply #9 on: June 09, 2016, 07:02:07 AM »

Hi Remco,
I suppose it was grey. Have you reasons to think that it was painted black?
Regards
Massimo
Logged
xan
Sr. Member
****
Posts: 457



WWW
« Reply #10 on: June 09, 2016, 11:14:17 PM »

Hello Remco,
beautiful work! I wanted to open th efuselage just as you did but At last I didn't....
I do want to see the final result, keep going on!
Xan
Logged

4bogreen
Sr. Member
****
Posts: 300



« Reply #11 on: June 13, 2016, 11:39:15 AM »

Hey Guys!

Massimo, it was indeed grey. I had a mix up with another armored vehicle.

Hi Xan, thanks! I am busy painting the interior. I have the photo's of the Yak-1b, in the Polish museum. But now i see that the floor is painted green. How thrustworty is that?

Logged

On the workbench,
- Yak-3 (Zvezda )
- T-34 STZ 1942 early (Cyberhobby)
- T-14 Armata (Revell)
Massimo Tessitori
Administrator
Hero Member
*****
Posts: 5777


« Reply #12 on: June 13, 2016, 05:37:05 PM »

Hi Remco,
I think that it's a color employed for some postwar restoration, possibly the same shade of wheel disks.
Regards
Massimo
Logged
KL
Hero Member
*****
Posts: 1678


« Reply #13 on: June 14, 2016, 03:07:18 AM »

... I have the photo's of the Yak-1b, in the Polish museum. But now i see that the floor is painted green. How thrustworty is that?



Hi Remco,

that looks like an interesting photo - can you please scan it and post scan for all of us?

For the sake of historical accuracy:  There are no Yak-1s in Polish museums. None!!! The sole preserved Yak-1 (one and only preserved Yak-1 of close to 10 000 made!!!) is displayed in Saratov, Russia. This particular plane was donated by F. Golovatiy to HSU B. Yeryomin in Dec 1942.  It was returned to Saratov in mid 1944 and kept in the regional museum since then.  It was overpainted numerous times...  Finaly, it was overhualed, extremely poorly in 2013.

This is all one and the same plane:

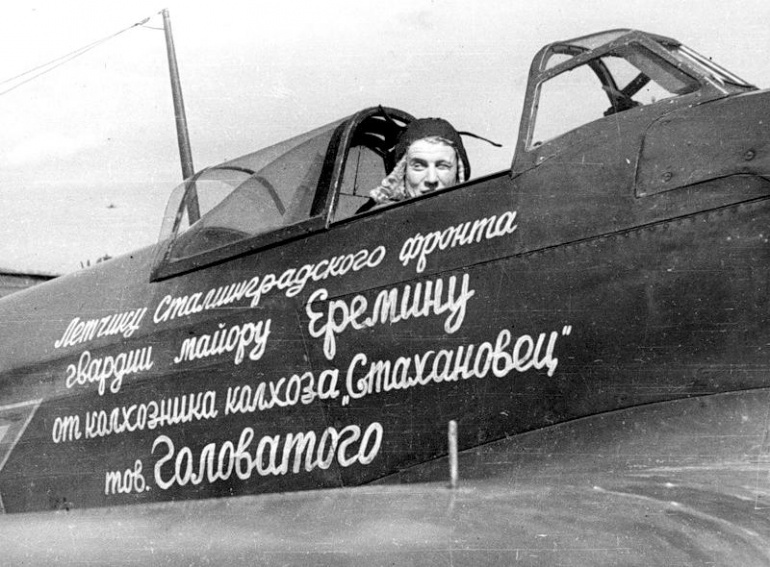

In Dec 1942


in 1943:


in 1944


in 2000


around 2010


in Dec 2013


Sad that all fabric, with original paint, had been lost in 2013 restoration...

HTH,
KL




Logged
4bogreen
Sr. Member
****
Posts: 300



« Reply #14 on: June 14, 2016, 09:25:36 PM »

Hi KL!

Glad that you joined the threat!  Cheesy I value your expertise and opinion enormus. Here is my link. Its indeed the Russian museum Yak-1b, not a Polish one. Sorry. Here is my link.

http://scalemodels.ru/modules/photo/viewcat_cid_198.html

The restoration of the Yak is shocking. Green/green with light blue. Regarding the info about russian WWII colors, is this very wrong and not professional.  Embarrassed

What is your opinion about the wheel wells and landing gear colors? It can be all blue, blue wheel wells and grey landing gear, all grey. Were there time tables about the use of the colors on the wheel wells and landing gear? Thanks in advance  Cheesy

Regards,

Remco
Logged

On the workbench,
- Yak-3 (Zvezda )
- T-34 STZ 1942 early (Cyberhobby)
- T-14 Armata (Revell)
